ZSTAT Car Audio

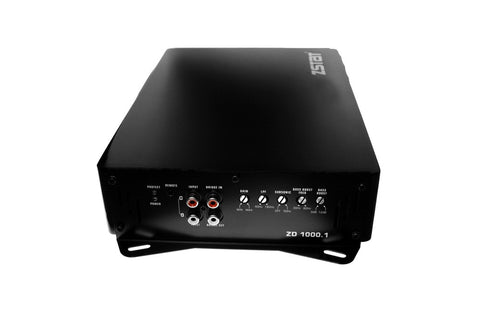

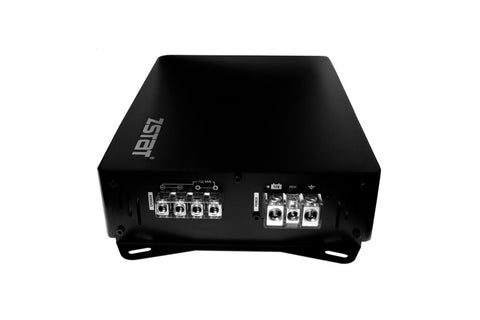

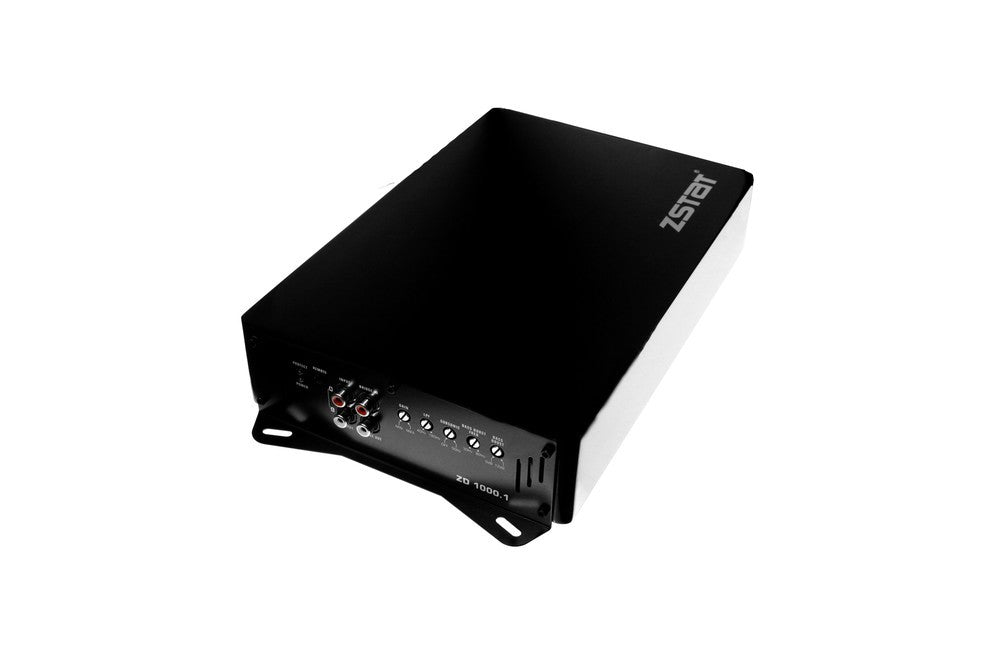

ZD1000.1
The ZD1000.1 is a 2 ohm stable mono block amplifier.
|
RMS @ 4 Ohm (<1%Distortion): 1 x 400 Watts |
|
RMS @ 2 Ohm (<1%Distortion): 1 x 600 Watts |
|
RMS @ 1 Ohm (<1%Distortion): 1 x 1000 Watts |
|
THD @ 4 Ohm (30% Rated Power): <0.2% |
|
Low-Pass Crossover: 40Hz ~ 180Hz |
|
Subsonic Filter: 5Hz ~ 50Hz |
|
Bass Boost Frequency: 30Hz ~ 180Hz |
|
Bass Boost Level: 0dB ~ 12dB |
|
Input Level: 0.2V ~ 5V |
|
Frequency Response: 8Hz ~ 180Hz |
|
Signal-to-Noise Ratio: >70dB |
|
Best Efficiency: >85% |
|
Minimum Load: 1 Ohm |
|
Optional Remote: YES |
|
Bridgeable w/ Same Amplifier: YES |
|
Overload Protect System: YES |
|
Short Circuit Test (max. power): PASS |
|
Overheat Protect Temperature: 80°C/176°F |
|
Components & PCB: SMT & Double Side Board |
|
Transparent Isolation Connector: YES |
